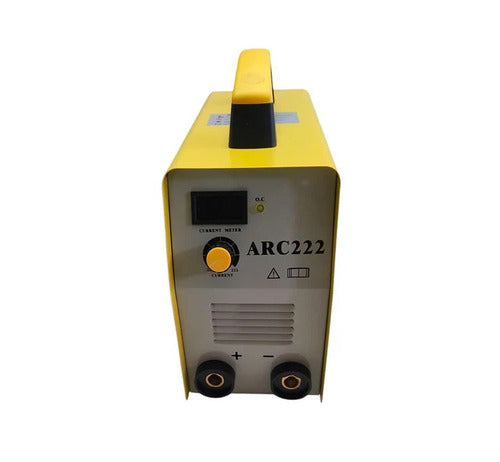

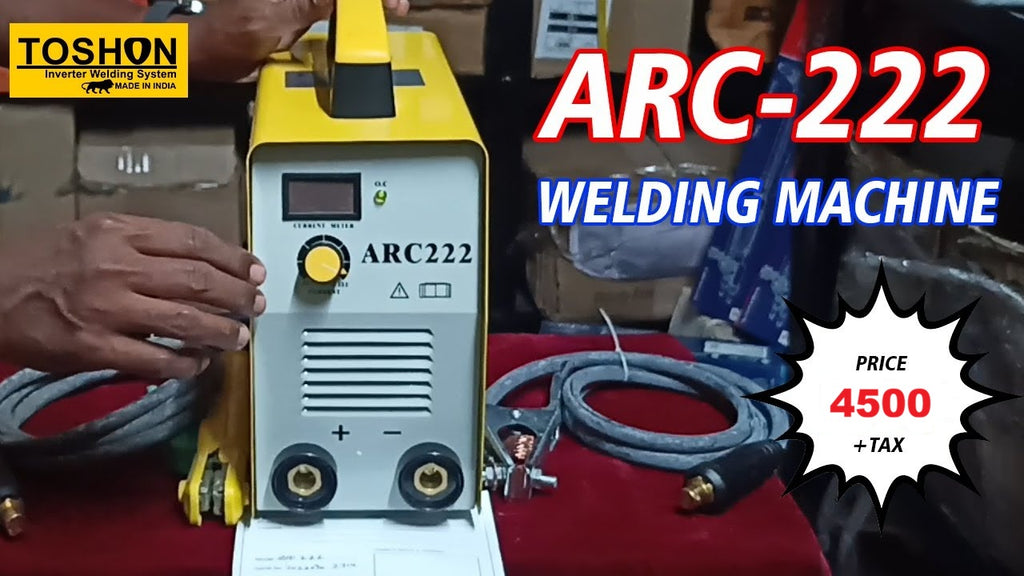

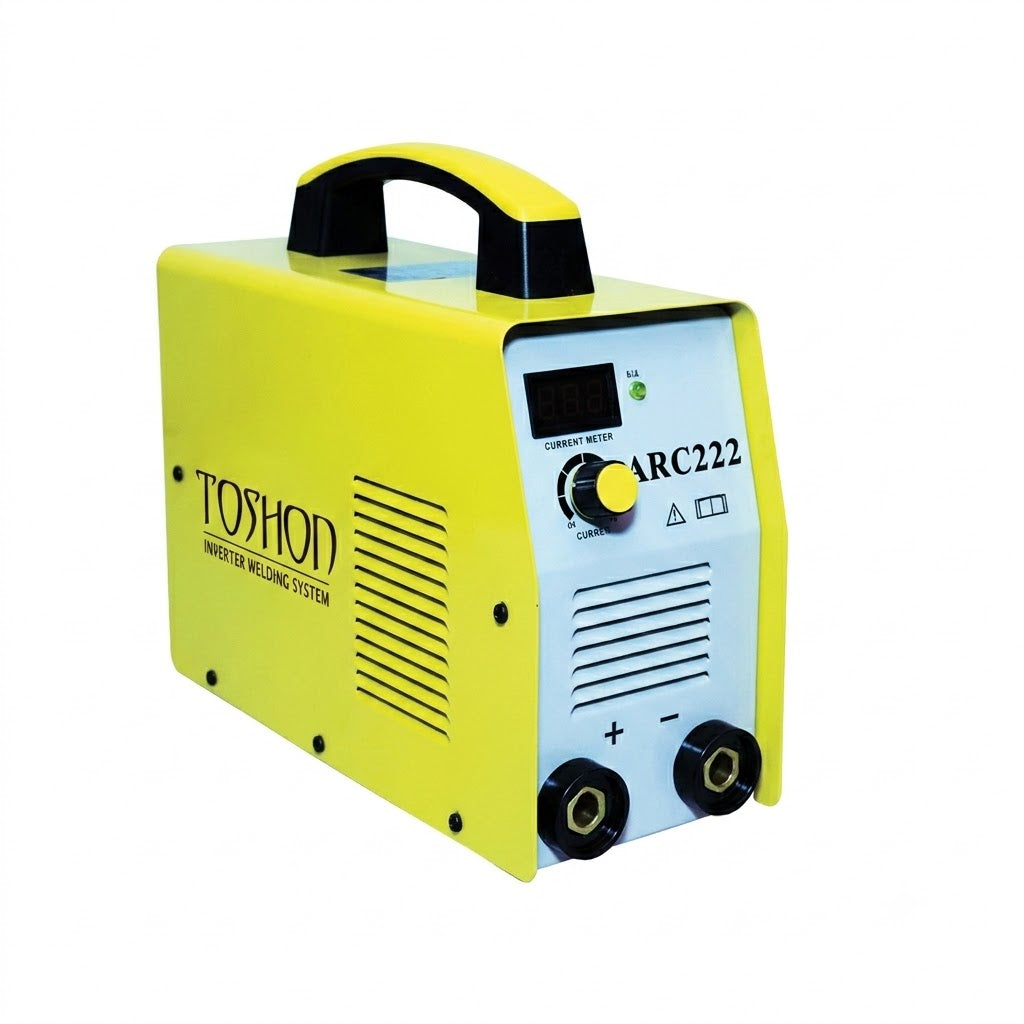

TOSHON ARC 222 IGBT MMA Arc Welding Machine

Rs. 4,450.00

The TOSHON ARC 222 is a compact and efficient IGBT Inverter MMA Arc Welding Machine designed for professional welders, fabrication workshops, maintenance applications, and home projects. Built with advanced inverter technology, it provides a stable...

Tags: 1 Phase Welding Machine, 20-200A Welding Machine, 200A inverter welder

Description Shipping Policy

The TOSHON ARC 222 is a compact and efficient IGBT Inverter MMA Arc Welding Machine designed for professional welders, fabrication workshops, maintenance applications, and home projects. Built with advanced inverter technology, it provides a stable welding arc, smooth ignition, and excellent weld penetration while minimizing power consumption.

Its lightweight 5 kg design makes it highly portable, while features like Arc Force, easy arc starting, over-voltage and over-current protection, and high efficiency ensure reliable performance even under demanding working conditions.

Whether you're welding mild steel, stainless steel, or general structural steel, the TOSHON ARC 222 delivers consistent and high-quality results.

Key Features

Advanced IGBT Inverter Technology
Stable Arc with Smooth Welding Performance
Easy Arc Starting & Arc Force Control
Deep Weld Penetration with Minimal Spatter
High Efficiency with Low Power Consumption
Over Voltage & Over Current Protection
Excellent Insulation Performance
Compact & Lightweight (Only 5 kg)
Easy to Carry for On-site Jobs
Suitable for Industrial, Fabrication & Repair Applications

Technical Specifications

Specification	Details
Model	ARC 222
Technology	IGBT Inverter
Welding Process	MMA (Stick Welding)
Input Voltage	AC 220V ±15%
Phase	Single Phase
Frequency	60 Hz
Input Power Capacity	4.4 kVA
Rated Input Current	19.2 A
No-Load Voltage	60 V
Output Current Range	20–200 A
Duty Cycle	60%
Efficiency	87%
Power Factor	0.73
Protection Class	IP21
Electrode Diameter	1.6–3.2 mm
Weight	5 kg
Dimensions	420 × 145 × 266 mm
