DESCRIPTION:

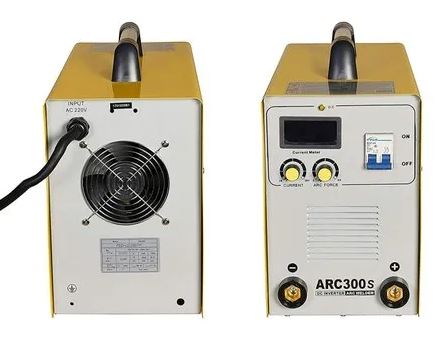

TOSHON MAKE SINGLE PHASE(220V) 300 AMPS MOSFET TYPE INVERTER BASED ARC WELDIG MACHINE

SUITABLE FOR UPHOLSTER INDUSTRY,HIGH ATTITUDE,FIELD OPERATION

FEATURES:

• • Advanced inverter technology
  • Advance arc force and arc starting function and can resist interference
  • Stable arc and little splash and low noise
  • high welding quality,deep bath ans strong strength
  • Auto protection of over voltage and over current
  • Suitable for welding all kind of basic welding rod
  • capable to work continuously
  • Automatic self-balancing ability when voltage is wavering
  • High efficiency,low electricity consumption
  • user friendly and easy maintenance

  • Light and handy for easy portability

• PARAMETERS	SPECIFICATION
  INPUT POWER(V)	AC 230 V
  FREQUENCY(Hz)	50/60
  INPUT POWER CAPACITY (KVA)	9
  CURRENT ADJUST RANGE(A)	20-300
  DUTY CYCLE(%)	60%
  POWER FACTOR	0.93
  INSULATION CLASS	F
  PROTECTION CLASS	IP 21
  WELDING DIAMETER	1.6-3.15
  WEIGHT(KG)	13.5
  DIMENSION(MM)	570*310*320
