Product Overview

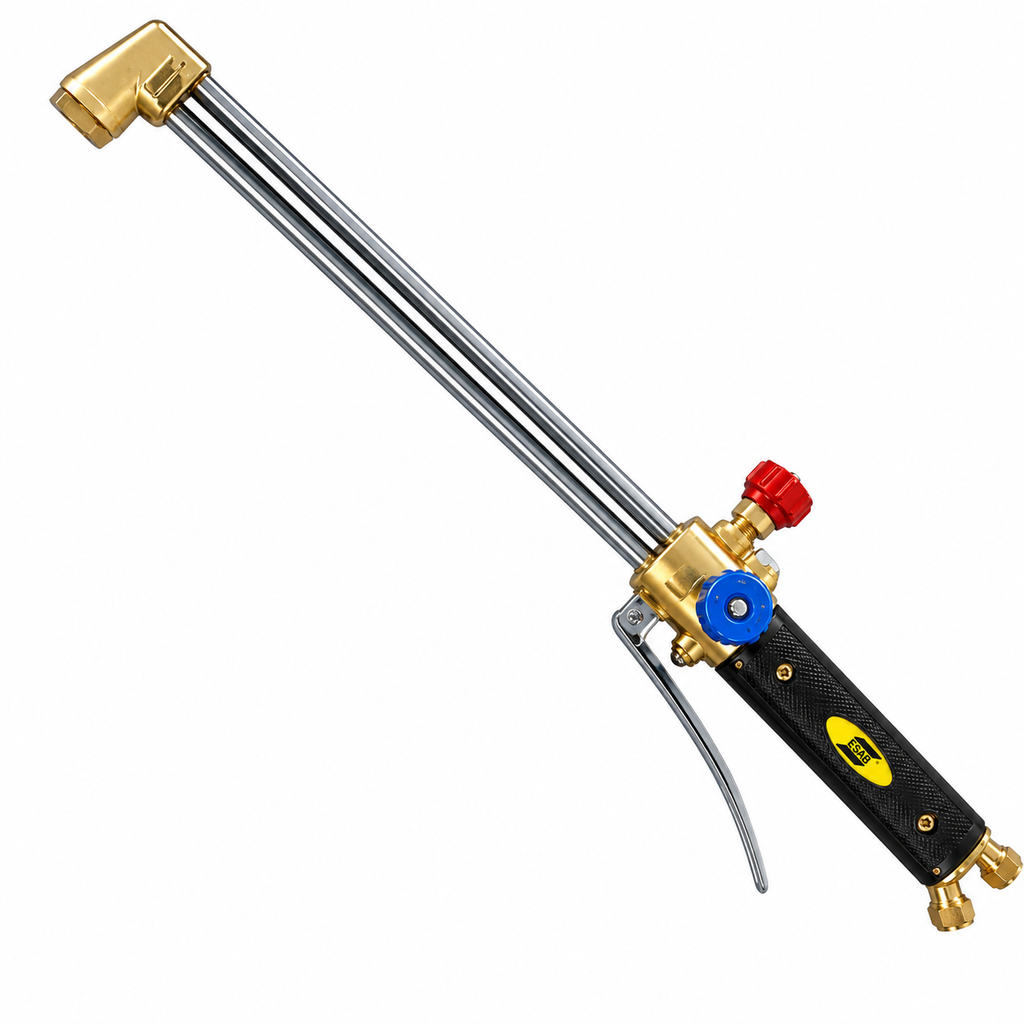

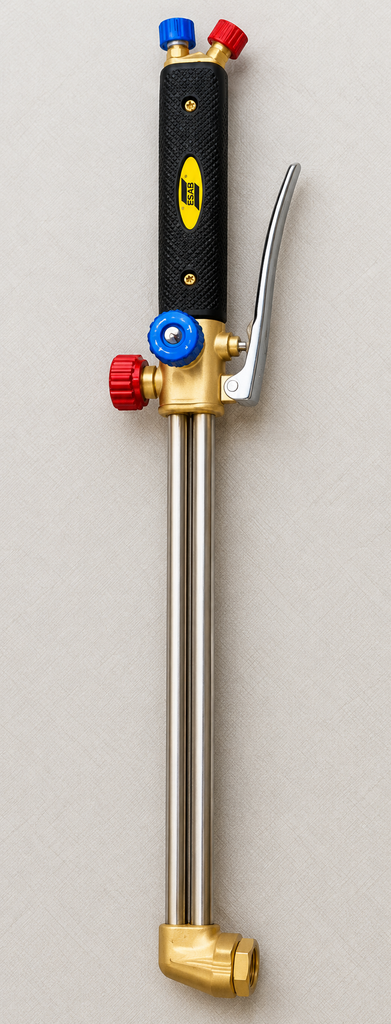

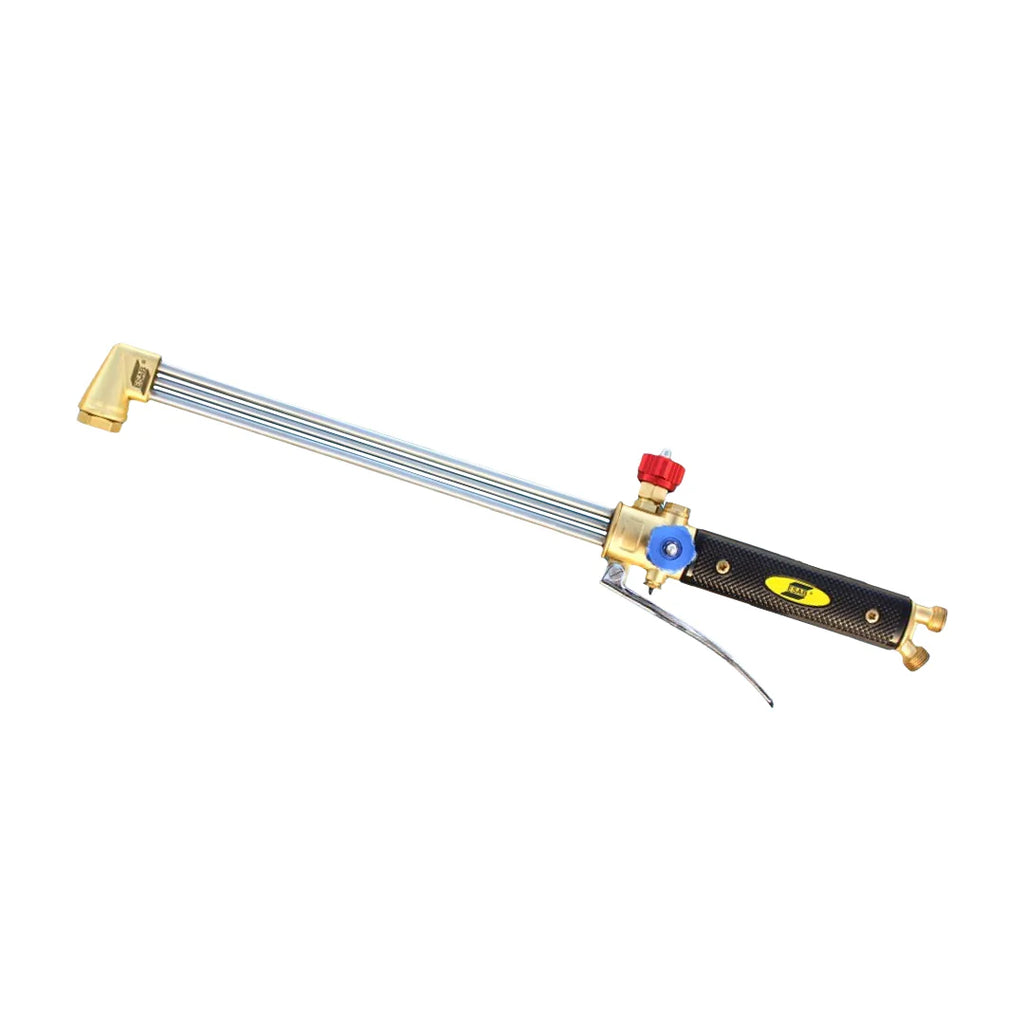

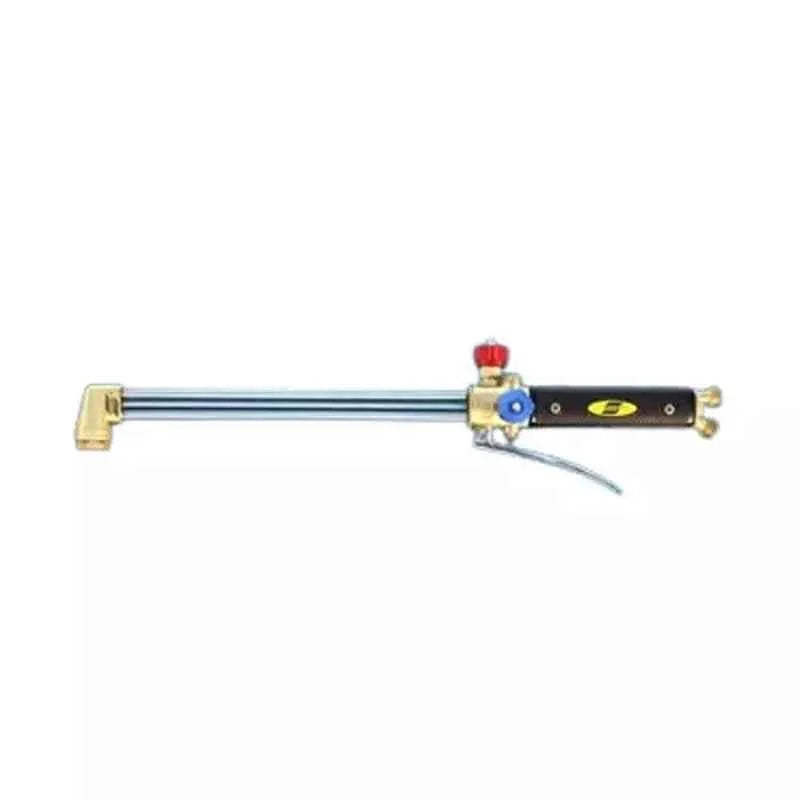

The ESAB XPERT CUTOGEN (2 PIPE) is a sturdy and well-balanced injector-type hand gas cutting blowpipe designed for professional oxy-fuel cutting applications. The CUTOGEN 5 can cut materials up to 300 mm and is suitable for use with either oxygen/LP gas or oxygen/acetylene.
The standard configuration is a 90° head angle with 450 mm length, with other lengths and 180° head-angle configurations also available.
Key Features
- Injector-mix cutting technology for reliable gas mixing
- Forged brass body and angle head for high strength and extended service life
- Balanced gas flow helps prevent backflow
- Nylon seat valve provides smooth operation and reliable gas tightness
- Colour-coded control knobs for easy identification of gas lines
- Compatible with A-Type, Coolex and LPG nozzles
- Cutting capacity of up to 300 mm
- Suitable for oxygen/LP gas or oxygen/acetylene
- Available in different lengths and head-angle configurations
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ESAB |
| Product | XPERT CUTOGEN |
| Product Type | Injector-Type Gas Cutting Blowpipe |
| Pipe Type | 2 Pipe |
| Cutting Capacity | Up to 300 mm |
| Gas Compatibility | Oxygen/LP Gas or Oxygen/Acetylene |
| Standard Head Angle | 90° |
| Standard Length | 450 mm |
| Alternative Head Angle | 180° |
| Body Material | Forged Brass |
| Compatible Nozzles | A-Type / Coolex / LPG |
Applications
- Heavy-duty gas cutting
- Steel plate cutting
- Structural steel fabrication
- Industrial fabrication
- Workshop cutting
- Maintenance and repair
- General oxy-fuel cutting
