DESCRIPTION

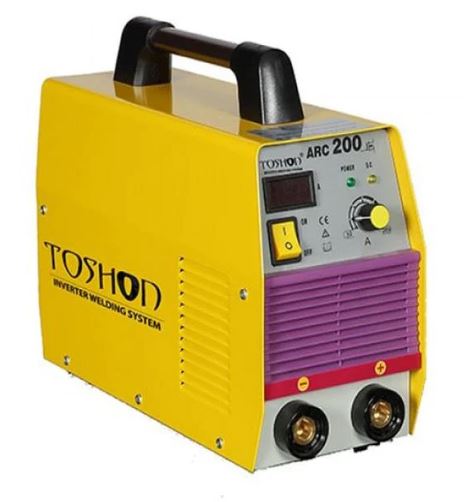

TOSHON MAKE SINGLE PHASE (230V) 200 AMPS TUBLOR IGBT TYPE INVERTER BASED DC ARC WELDING MACHINE
Features
Standard Accessories
-
Arc holder with cable
- Earth clamp with cable

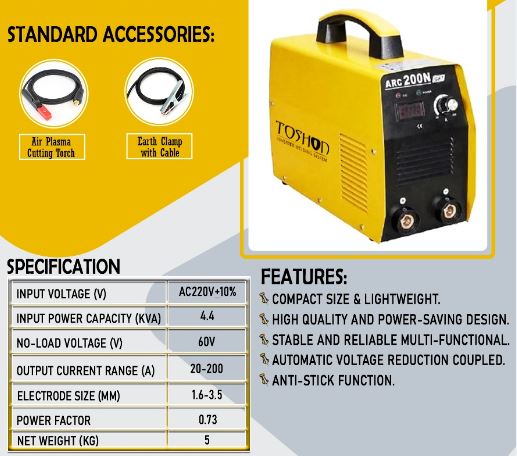

| Parameter: | ARC 200N |
| Rated Input Voltage(V) | AC 230V + 15% |
| INPUT FREQUENCY | 50/60Hz |
| Rated Input Power(KVA) | 4.4 |
| Rated output Current(A) | 20-200 |
| No-load Voltage(A) | 60 |
| Duty Cycle (%) | 60% |
| Efficiency(%) | 85 |
| Power Factor | 0.70 |
| Protection Class | IP21 |
| Insulation Class | F |
| Electrode Diameter(mm) | 1.6~3.15 |
| Size(mm) | 410*180*330 |
| Weight(KG) | 7 |
